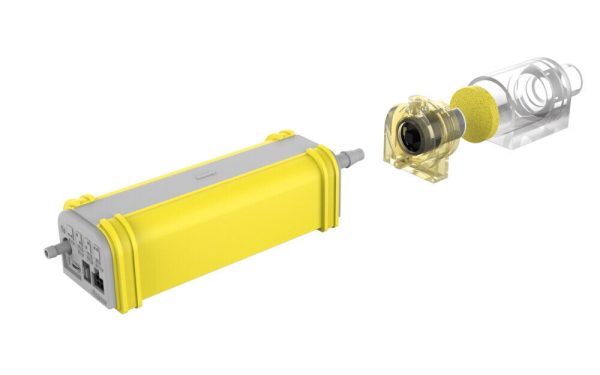

REFCO COMBI Condensate Pump for Air Conditioning Systems 1.75 kW – 35 kW

Product Description

The REFCO COMBI condensate pump is designed for air conditioning systems with a capacity of 1.75 kW to 35 kW (6,000 to 120,000 BTU/hr). Thanks to its digital water sensor, universal voltage range, and adjustable pump capacity, the COMBI is one of the most powerful and quiet condensate pumps on the market.

Its wide range of applications makes this pump suitable for almost all air conditioning installations, allowing installers and wholesalers to meet diverse needs with a single model.

Key Benefits

• Suitable for air conditioning systems from 1.75 kW to 35 kW

• Digital water sensor without float issues

• Sensor can be mounted horizontally or vertically

• Adjustable pump capacity for optimal performance

• Up to 42 liters pump capacity per hour

• Maximum head of 20 meters

• Very quiet: less than 19 dB(A)

• Universal power supply from 100-240 VAC

• Warranty period only starts upon commissioning (readable via USB)

• Spare parts available

Technical Specifications

• Type: Diaphragm pump

• Maximum flow rate: 42 l/h

• Maximum head: 20 m

• Maximum suction height: 3 m

• Noise level: 19 dB(A)

• Hose diameter: 6 mm

• Supply voltage: 100-240 VAC

• Frequency: 50 / 60 Hz

• Power consumption: 12 W

• Protection class: Class I

• IP protection: IP44

• Alarm relay: Configurable NO or NC, 250 VAC 6.3 A or 28 VDC 6.3 A

• Cable length: 1.5 m

• Operating temperature: 3°C to 40°C

• Water temperature: 5°C to 25°C

• Storage temperature: -20°C to 50°C

Color

• Grey (RAL 7040)

• Yellow (RAL 1023)

Scope of Delivery

• Power cable

• Alarm cable

• Sensor cable

• Star hose with anti-siphon device

• Suction line

• Ventilation tube

• Factory-installed alarm safety device

• Cable ties

• Manual

Packaging

• Blister packaging

The REFCO COMBI offers a reliable, powerful, and particularly quiet solution for condensate drainage in modern air conditioning systems.
