DRC DCB31 Digital Thermostat with 1 Sensor

Product Description

The DRC DCB31 Digital Thermostat is an advanced electronic controller for refrigeration and heating systems. The device is specifically designed for applications such as bottle coolers, refrigerated display cases, refrigerated counters, and refrigerators.

The thermostat features one relay output and performs a static defrost cycle by temporarily switching off the compressor. Thanks to its clear LED display, simple operation via four buttons, and IP65 protection of the front panel, the DCB31 is a reliable solution for professional refrigeration applications.

With its compact dimensions of 33 × 77 mm, the controller can be easily mounted in a panel opening using clamp mounting.

Applications

• Refrigerated counters

• Bottle coolers

• Refrigerated display cases

• Refrigerators

• Commercial refrigeration systems

• Heating and cooling controls

Key Features

• Suitable for both heating and cooling

• Electronic thermostat with relay output

• Static defrost function with adjustable time intervals

• Manual start and stop function for defrosting

• Configurable digital input

• Display and control of the current temperature

• Clear LED display with special symbols

• 3-digit display with 12 mm high digits

• Control panel with 4 buttons

• Front panel with IP65 protection

• On and off switching via a button

• Developed for OEM applications

• Available with relay outputs for high current capacities

  • 30A at 250VAC

  • 16A at 250VAC

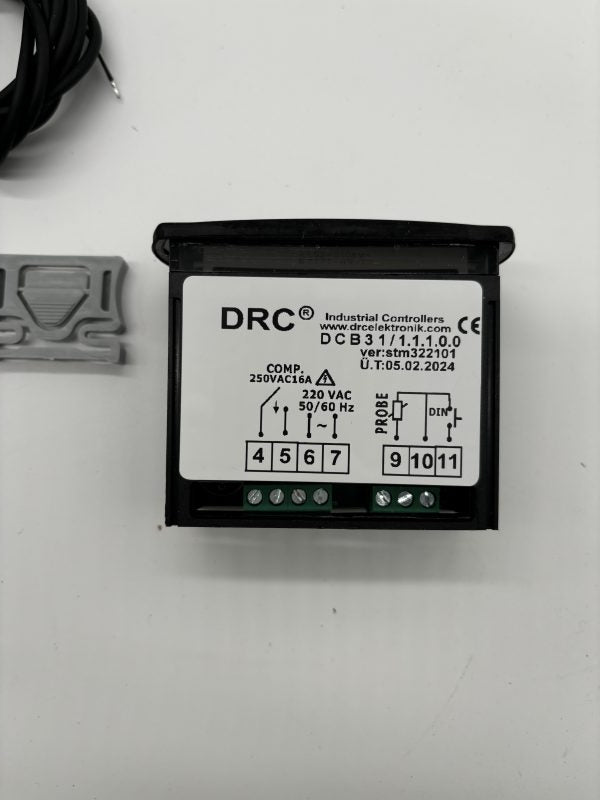

• Mounting with screw terminals

• Easy panel mounting by clamp mounting

• Optional alarm for dirty condenser

Technical Specifications

• Model: DCB31

• Type: Digital thermostat

• Front dimensions: 33 × 77 mm

• Front panel protection class: IP65

• Display: LED display, 3 digits (12 mm)

• Operation: 4 buttons

• Sensor input: 1 probe

• Defrost system: Static defrost via compressor shutdown

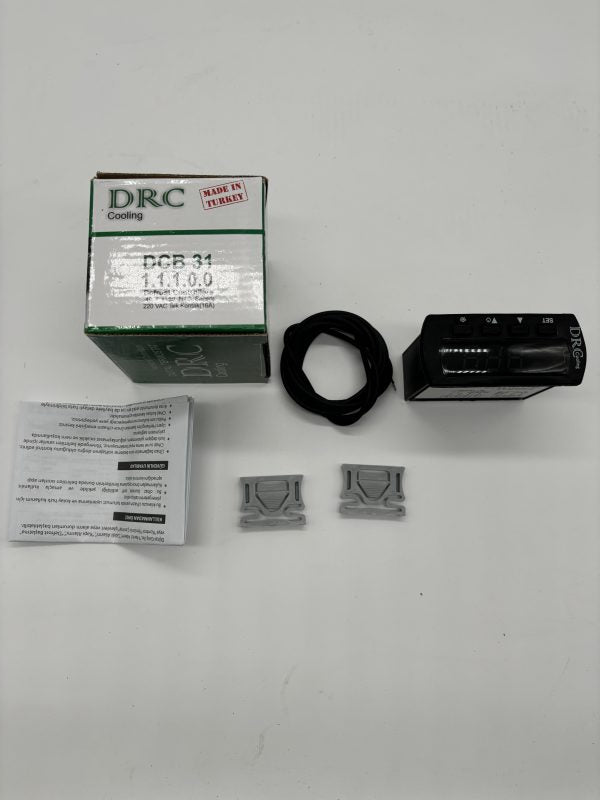

Scope of Delivery

• 1 × DRC DCB31 Digital Thermostat

• Manual

The DRC DCB31 offers reliable, accurate, and user-friendly temperature control for professional refrigeration and heating systems.
