Sauermann Delta Pack Condensate Pump 20 l/h with Trunking

Product Description

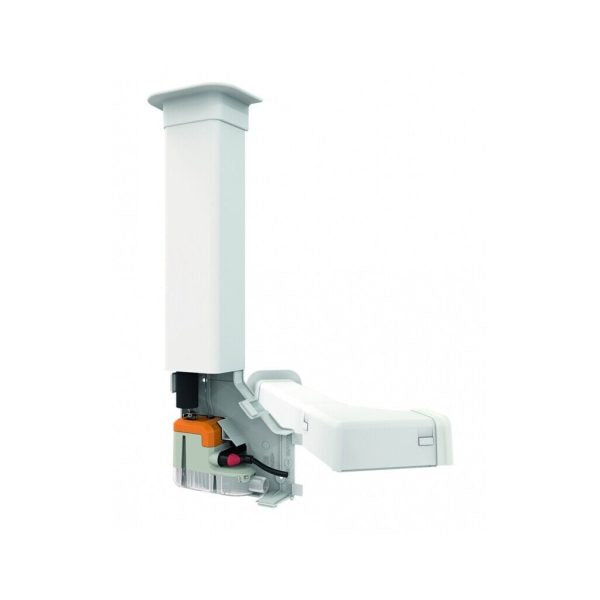

The Sauermann Delta Pack (DP10CE05UN23) is a complete condensate pump solution for wall-mounted air conditioners up to 20 kW. The set consists of a powerful and quiet condensate pump combined with integrated trunking, allowing pipes and wiring to be neatly and discreetly concealed.

With a maximum pumping capacity of 20 liters per hour, a discharge head of 10 meters, and a noise level of only 22 dB(A), this condensate pump offers reliable performance for both residential and commercial applications.

Thanks to its compact design, easy installation, and integrated overflow protection, the Delta Pack is an ideal choice for professional HVAC installations.

General Information

• Model: Delta Pack 80 × 60

• Manufacturer Part Number: DP10CE05UN23

• Brand: Sauermann

• Type: Condensate pump with trunking

• Application: Wall-mounted air conditioners up to 20 kW

• Color: Signal White (RAL 9003)

Technical Specifications

• Pump Type: Piston pump

• Maximum Discharge Head: 10 meters

• Maximum Pumping Capacity: 20 liters per hour

• Power Supply: 230V AC

• Power Consumption: 19 W

• Noise Level: 22 dB(A) at 1 meter distance

• Protection Class: IP20

Mechanical Data

Pump

• Dimensions: 75 × 38 × 55 mm

• Weight: 0.25 kg

Trunking

• Dimensions: 800 × 60 × 60 mm

• Weight complete set: 1.5 kg

Connections

• Inlet: 6 mm internal diameter

• Outlet: 6 mm internal diameter

Material

• Casing: High-grade ABS plastic

Environmental Conditions

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -10°C to +70°C

• Maximum Relative Humidity: 95% non-condensing

Key Advantages

Very Quiet Operation

• Only 22 dB(A)

• Ideal for homes, offices, and quiet spaces

Easy Installation

• Compact design

• Quick to connect

• Includes integrated trunking

Maintenance-Friendly

• Easy access to key components

• Simple maintenance and cleaning

Safe and Reliable

• Built-in overflow protection

• Automatic shutdown in case of overflow

Neat Finish

• Trunking in Signal White (RAL 9003)

• Protects pipes and wiring

• Professional appearance

Certifications

• CE-marked

• RoHS compliant

• WEEE compliant

Warranty

• 2-year manufacturer's warranty

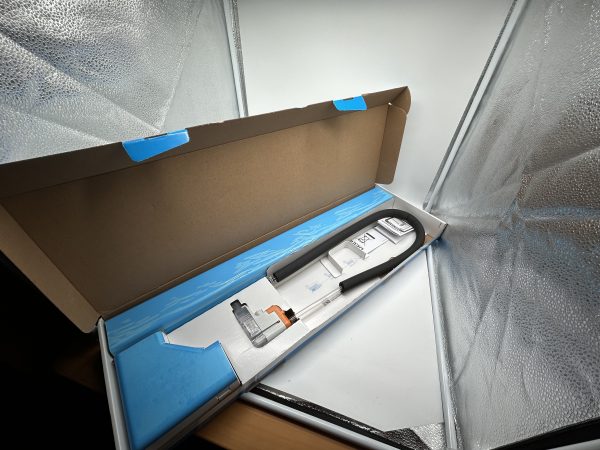

Scope of Delivery

• 1 × Sauermann condensate pump

• 1 × Trunking 80 × 60 mm (length 800 mm)

• Mounting materials (screws, plugs, and fixings)

• Connection hoses and adapters

• Manual

Applications

• Homes

• Office buildings

• Commercial buildings

• Small industrial applications

• Wall-mounted air conditioners and HVAC systems

The Sauermann Delta Pack 20 l/h condensate pump with trunking combines quiet operation, reliable performance, and a neat installation in one complete solution for modern air conditioning systems.
