Sauermann Omega Pack Condensate Pump 20 l/h

Product Description

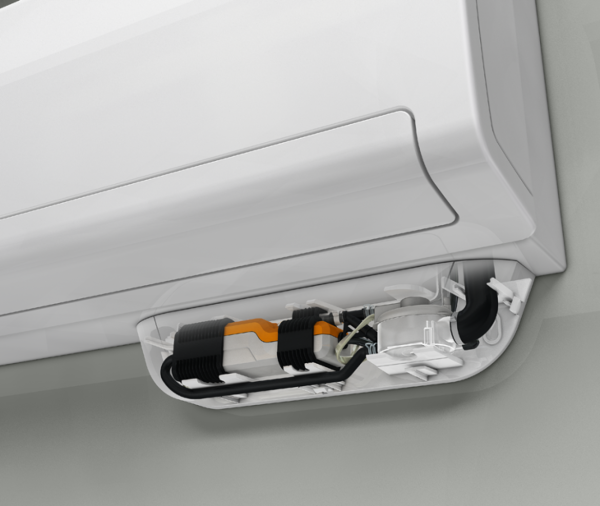

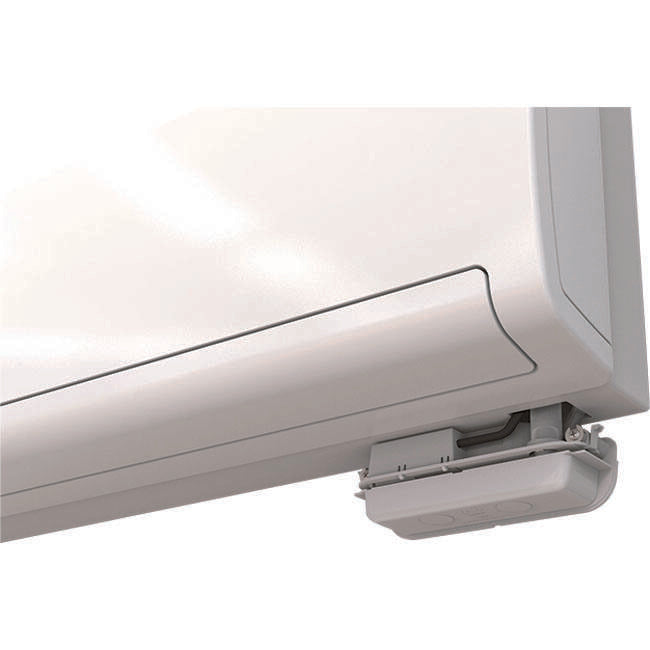

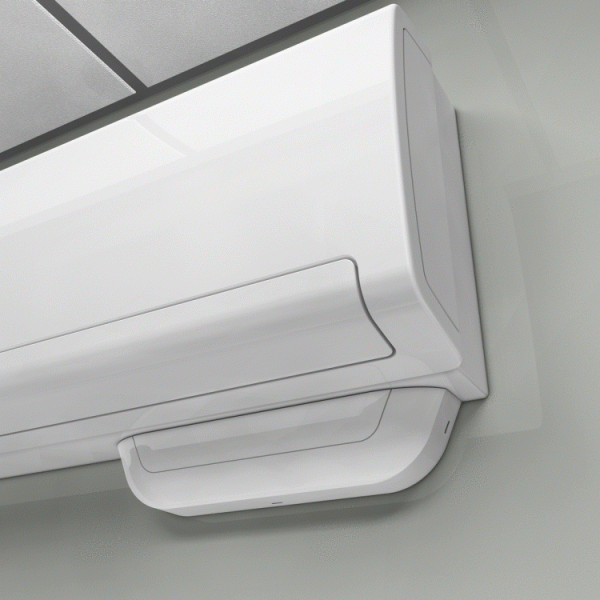

The Sauermann Omega Pack condensate pump is a compact and reliable solution for draining condensate water from wall-mounted air conditioners. Thanks to its slim design, the pump can be discreetly installed under the indoor unit, providing a neat and professional installation.

With a maximum pumping capacity of 20 liters per hour, a discharge head of 10 meters, and a remarkably low noise level of only 22 dB(A), the Omega Pack is ideal for both residential and commercial applications.

The integrated overflow protection, easy installation, and maintenance-friendly design make this condensate pump a reliable choice for HVAC professionals.

General Information

• Model: Omega Pack

• Brand: Sauermann

• Type: Condensate pump

• Application: Installation under wall-mounted air conditioners

• Color: Signal white (RAL 9003)

Technical Specifications

• Pump type: Piston pump

• Maximum discharge head: 10 meters

• Maximum pumping capacity: 20 liters per hour

• Power supply: 230V AC

• Power consumption: 19 W

• Noise level: 22 dB(A) at 1 meter distance

• Protection class: IP20

Mechanical Data

• Dimensions: 145 × 47 × 29 mm

• Weight: 0.25 kg

• Housing material: ABS plastic

• Inlet connection: 6 mm internal diameter

• Outlet connection: 6 mm internal diameter

Environmental Conditions

• Operating temperature: 0°C to +50°C

• Storage temperature: -10°C to +70°C

• Maximum relative humidity: 95% non-condensing

Key Benefits

Quiet Operation

• Only 22 dB(A)

• Ideal for residential and office environments

Easy Installation

• Compact design for installation under wall-mounted air conditioners

• Discrete and professional finish

Maintenance-Friendly

• Easy access to essential components

• Simple maintenance and cleaning

Safe and Reliable

• Integrated overflow protection

• Automatic shutdown in case of overflow

Versatile Application

• Suitable for various wall-mounted air conditioners

• Applicable in diverse HVAC installations

Certifications

• CE marked

• RoHS compliant

• WEEE compliant

Warranty

• 2-year manufacturer's warranty

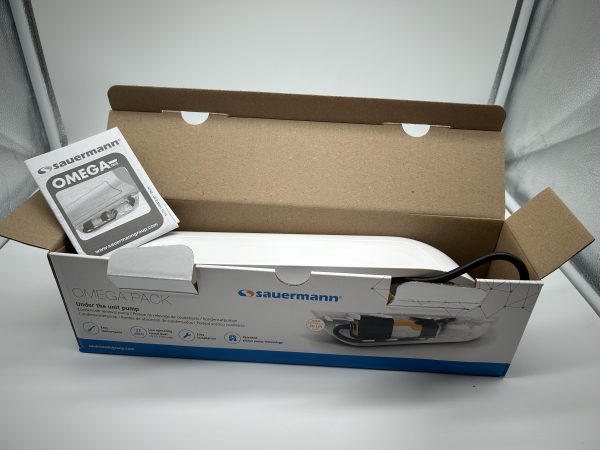

Scope of Delivery

• 1 × Sauermann Omega Pack condensate pump

• Mounting material (screws, plugs, and fixings)

• Connection hoses and adapters

• Manual

Applications

• Homes

• Office buildings

• Commercial buildings

• Small industrial applications

• Wall-mounted air conditioning systems

The Sauermann Omega Pack condensate pump 20 l/h offers a quiet, compact, and reliable solution for condensate drainage in modern air conditioning systems.
