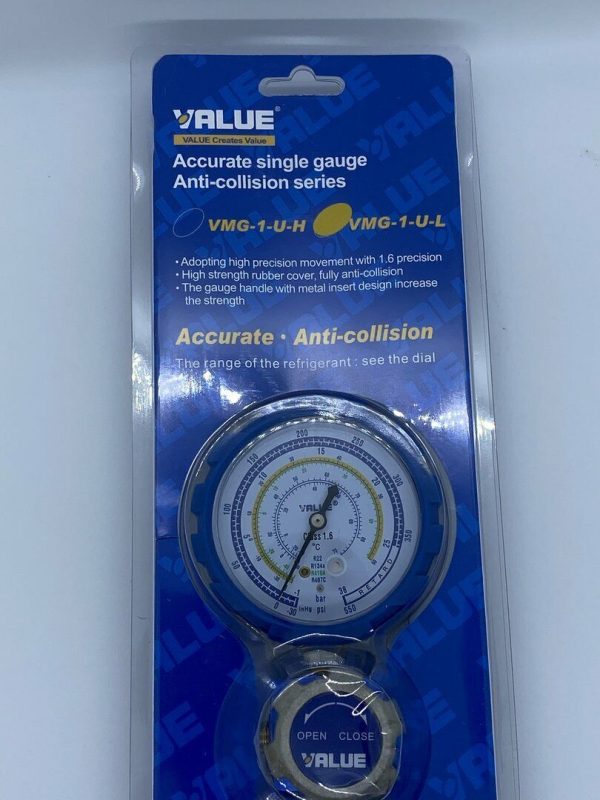

Value VMG-1-U-L Single Manifold Gauge for R22, R134a, R410A and R407C

Product Description

The Value VMG-1-U-L single manifold gauge is a precise measuring instrument for service and maintenance work on refrigeration and air conditioning systems. Thanks to the integrated refrigerant scales for R22, R134a, R410A and R407C, pressure measurements can be carried out quickly and easily.

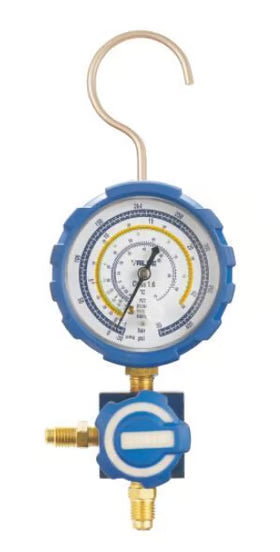

The manifold gauge features a robust anodized aluminum manifold body, a shock-resistant rubber protective cover, and a practical hanging hook for comfortable use during work. The clear 68 mm gauge offers a measuring range of -30 to 550 psi (-1 to 38 bar) and also includes a vacuum scale in inHg.

Key Benefits

• Suitable for R22, R134a, R410A and R407C

• Accuracy class 1.6

• Shock-resistant rubber protection

• Anodized aluminum manifold body

• Clearly legible scale

• Includes hanging hook for easy use

• Compact and professional design

Technical Specifications

• Brand: Value

• Model: VMG-1-U-L

• Type: Single manifold gauge

• Refrigerant scales: R22, R410A, R407C, R134a

• Measuring range: -30 to 550 psi

• Measuring range: -1 to 38 bar

• Vacuum unit: inHg

• Accuracy class: 1.6

• Gauge diameter: 68 mm

• Hose connection: 1/4″ SAE

• Number of connections: 2 × 1/4″ SAE

• Manifold body material: Anodized aluminum

• Protection: Rubber casing

Usage Tips

• Tighten hose connections by hand.

• Do not use pliers to avoid damaging the Teflon seal.

• Open the valve counter-clockwise.

• Close the valve clockwise.

• Avoid overloading the manifold gauge to prevent measurement errors and internal damage.

Scope of Delivery

• 1 × Value VMG-1-U-L single manifold gauge

• Blister packaging

The Value VMG-1-U-L manifold gauge is a reliable choice for refrigeration technicians and HVAC professionals who require accurate pressure measurements for maintenance and diagnosis of refrigeration and air conditioning systems.
