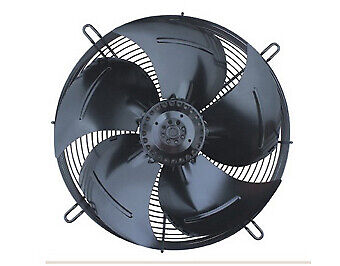

Extractor fan, axial fan with protective grille, extracting 250 mm

Extractor fan, axial fan with protective grille, extracting 250 mm

Axial fan with protective grille

Can be used in commercial, industrial and domestic applications, for example in the ventilation, air conditioning and refrigeration sectors and more.

Large axial fans (made of metal), also known as external rotor fans, are often used in ventilation, cleanroom technology, refrigeration technology, heat exchangers, welding equipment, condensing units, cold rooms, etc. These axial fans take up little space and are therefore very suitable for installations with limited space. Large axial fans are characterized by excellent performance under severe temperature and pressure conditions. With an operating range from -40°C to +60°C, these fans function in a wide temperature range. These motors are energy-efficient and the propellers are designed with an aerodynamic profile to reduce noise development. Thanks to these advantages, our axial fans are an excellent product.

Design

• Type: extracting

• Propeller diameter: 250 mm

• Propeller blade material: sheet steel

• Number of blades: 5

• Protective grille material: steel wire

• Colour: black

Technical data

• Voltage: 220 V

• Current: 0.25 A

• Power consumption: 55 W

• Frequency: 50 Hz

• Speed: 1400 rpm

• Capacitor: 2 µF / 450 V

A powerful and compact axial fan suitable for demanding cooling and ventilation applications.
