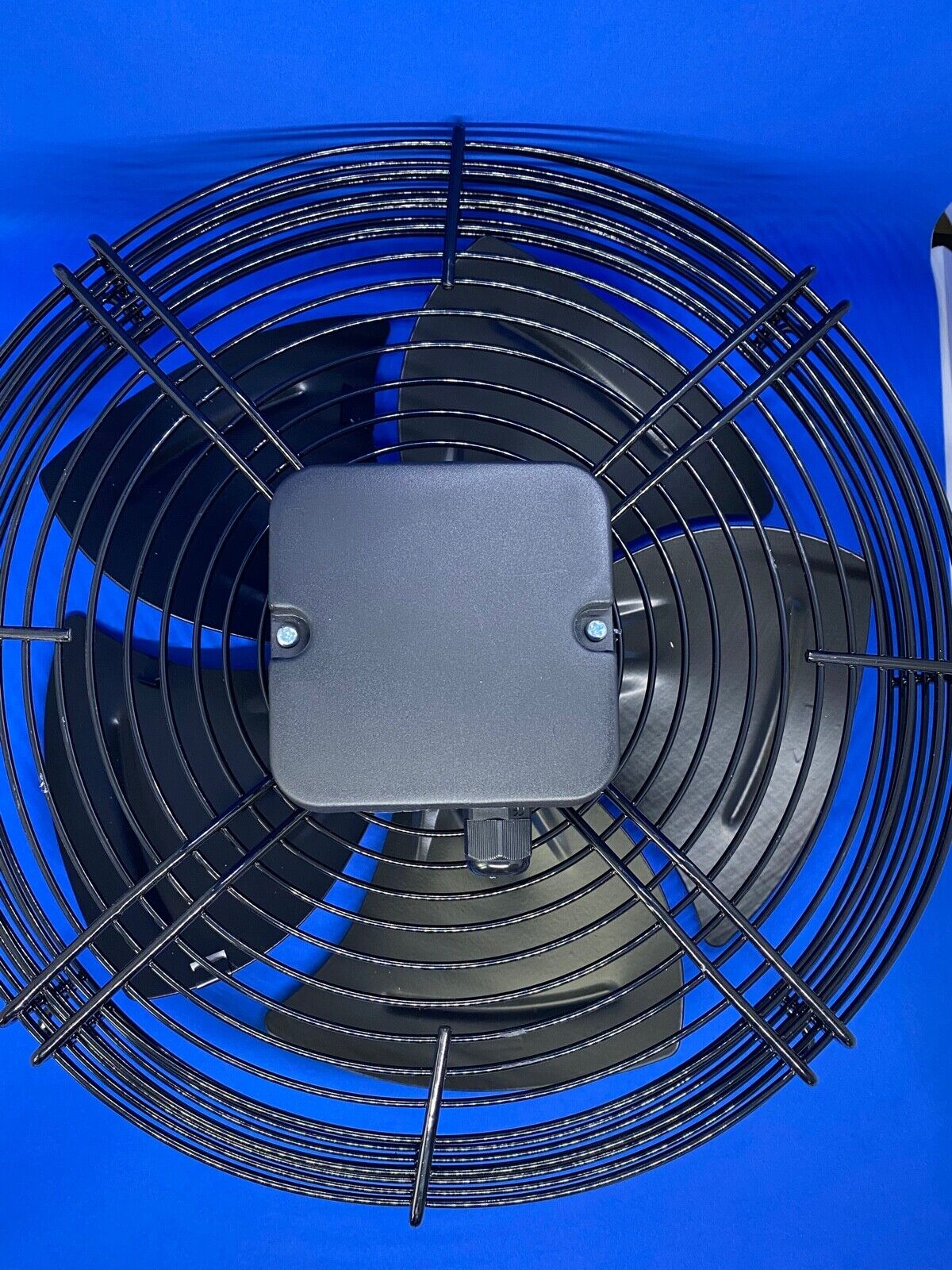

Exhaust fan, axial fan with protective grille, extracting 300 mm

300S Axial Fan with Protective Grille – suction 300 mm

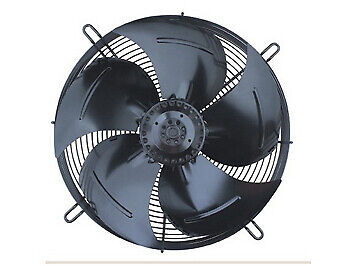

Axial fan with protective grille

Can be used in commercial, industrial and household applications, for example in ventilation, climate and cooling technology and other sectors.

Large axial fans (made of metal), also known as external rotor fans, are often used in ventilation, cleanroom technology, refrigeration technology, heat exchangers, welding equipment, condensing units, cold rooms, etc. These fans take up little space and are therefore very suitable for situations with limited installation space. They are characterized by high performance under severe temperature and pressure conditions. With an operating range of -40°C to +60°C, these fans function reliably in wide temperature conditions. The motors are energy-efficient and the propeller blades are aerodynamically designed to reduce noise production. This makes these axial fans a high-quality solution.

Design

• Type: suction

• Propeller diameter: 300 mm

• Propeller blade material: sheet steel

• Number of blades: 5

• Protective grille material: steel wire

• Colour: black

Technical data

• Voltage: 220 V

• Current: 0.42 A

• Power consumption: 90 W

• Frequency: 50 Hz

• Rotational speed: 1400 rpm

• Capacitor: 3 µF / 450 V

A powerful and durable axial fan suitable for intensive cooling and ventilation applications.
