Suction fan, axial fan with protective grille, sucking 350 mm

Suction fan, axial fan with protective grille, suction 350 mm

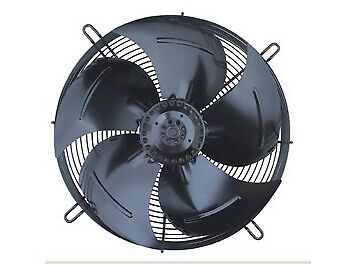

Axial fan with protective grille

Can be used in commercial, industrial and domestic applications, for example in ventilation, climate and refrigeration technology and other sectors.

Large axial fans (made of metal), also known as external rotor fans, are often used in ventilation, cleanroom technology, refrigeration technology, heat exchangers, welding equipment, condensing units and cold rooms. These fans take up little space and are therefore very suitable for installations with limited space. They are characterized by high performance under severe temperature and pressure conditions. With an operating range of -40°C to +60°C, these fans function reliably over a wide temperature range. The motors are energy-efficient and the propeller blades are aerodynamically designed to reduce noise production. This makes these axial fans a high-quality solution.

Version

• Type: suction

• Propeller diameter: 350 mm

• Propeller blade material: sheet steel

• Number of blades: 5

• Protective grille material: steel wire

• Color: black

Technical data

• Voltage: 220 V

• Current: 0.60 A

• Power consumption: 135 W

• Frequency: 50 Hz

• Speed: 1400 rpm

• Capacitor: 4 µF / 450 V

A powerful and reliable axial fan suitable for demanding cooling and ventilation applications.
