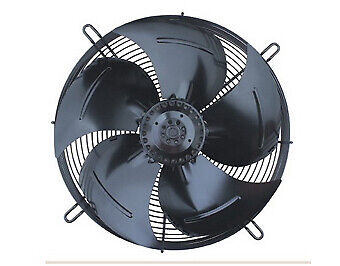

Exhaust fan, axial fan with protective grille, exhausting 450 mm

Extractor fan, axial fan with protective grille, extracting 450 mm

Axial fan with protective grille

Can be used in commercial, industrial and domestic applications, for example in ventilation, climate and cooling technology and other sectors.

Large axial fans (made of metal), also known as external rotor fans, are often used in ventilation, cleanroom technology, refrigeration technology, heat exchangers, welding equipment, condensing units and cold rooms. These fans take up little space and are therefore very suitable for installations with limited space. They are characterized by high performance under severe temperature and pressure conditions. With an operating range of -40°C to +60°C, these fans function reliably over a wide temperature range. The motors are energy-efficient and the propeller blades are aerodynamically designed to reduce noise. This makes these axial fans a high-quality solution.

Design

• Type: extracting

• Propeller diameter: 450 mm

• Propeller blade material: sheet steel

• Number of blades: 5

• Protective grille material: steel wire

• Colour: black

Technical data

• Voltage: 220 V

• Current: 0.25 A

• Power consumption: 55 W

• Frequency: 50 Hz

• Speed: 1400 rpm

• Capacitor: 2 µF / 450 V

A powerful and energy-efficient axial fan, suitable for professional cooling and ventilation applications.
